Home / HVAC Motors & Draft Inducers / Furnace Motors
  • 1471P Nidec | 1/10 Hp 1050 RPM 1-Speed 115/208-230V; 5.0" Blower Motor -MotorHub Shop 1469P 51983.1569944073
  • 2867P Nidec | 1/5 Hp 1050 RPM 1-Speed 115V; 5" Blower Motor -MotorHub Shop 2867p 54527.1567879664
-47%
1468P Nidec | 1/20 Hp 1550 RPM 1-Speed 115/208-230V; 5.6" Blower Motor
1468P Nidec | 1/20 Hp 1550 RPM 1-Speed 115/208-230V; 5.6" Blower Motor - Image 2
1468P Nidec | 1/20 Hp 1550 RPM 1-Speed 115/208-230V; 5.6" Blower Motor - Image 3
1468P Nidec | 1/20 Hp 1550 RPM 1-Speed 115/208-230V; 5.6" Blower Motor - Image 4
1468P Nidec | 1/20 Hp 1550 RPM 1-Speed 115/208-230V; 5.6" Blower Motor -MotorHub Shop 1469P back 12708.1569943885
1468P Nidec | 1/20 Hp 1550 RPM 1-Speed 115/208-230V; 5.6" Blower Motor -MotorHub Shop 1469P extras 19133.1569943885
1468P Nidec | 1/20 Hp 1550 RPM 1-Speed 115/208-230V; 5.6" Blower Motor -MotorHub Shop Nidec 1468P line 24421.1569943899

1468P Nidec | 1/20 Hp 1550 RPM 1-Speed 115/208-230V; 5.6″ Blower Motor

$189.20 Original price was: $189.20.$99.99Current price is: $99.99.

Buy Now
SKU: ZWXLY 1698669522 Categories: Furnace Motors, HVAC Motors & Draft Inducers Tag: Nidec
  • Protect Your Information, Shop with Safe Payments
  • Buy quality, buy with us.
  • Efficiency meets excellence in customer care.
  • Top-Notch Quality
Browse
  • Electric Motors
    • Air Compressor Motors
    • Ametek Lamb Vacuum Motors
    • Bison Gear Motors
    • Dayton Gear Motors
    • Fasco Motors
    • Leeson/Marathon Electric Motors
    • Modine Replacement Motors
    • Motor Controls
    • Unit Bearing Motors
  • HVAC Motors & Draft Inducers
    • Air Condenser Fan Motor
    • Dayton Ventilator Replacement Motors
    • Draft Inducer Venter Motors-Furnace
    • Dual Shaft Motors
    • Furnace Motors
    • Hanging Furnace Motors
    • HVAC-OEM Blower Motors
    • Penn Vent Motors
    • Water Heater Exhaust Blowers
  • Pool & Spa Motors
    • Century Pool & Spa Motors
    • Marathon/Leeson Jet Pump Motors
    • PENTAIR EQ Series Pump Motor
    • US Electric Motors
  • Pulleys and Sheaves
    • 3V Pulley
    • 5V Pulley
    • A/B Pulley
    • AK Sheaves
    • AK-H Pulleys-Bushing Required
    • BK Sheaves
    • BK-H Pulleys-Bushing Required
    • Bushing-Taper Lock
    • C Pulley
    • Die Cast-Fixed Bore
    • Variable Pitch-Fixed Bore
  • Uncategorized
Recently Viewed
  • CA3409 Nidec | 1/3 Hp, 1600 RPM 1-Speed 208-230V Carrier Blower Motor CA3409 Nidec | 1/3 Hp, 1600 RPM 1-Speed 208-230V Carrier Blower Motor $124.40 Original price was: $124.40.$87.08Current price is: $87.08.
  • Description
  • Reviews (0)
  • 1/20 hp 1550 RPM 1-Speed 115/208-230V 1.1/0.5 amps
  • 21/29 frame replacement
  • Shaft 3/8″ x 3.25″
  • Rotation CCW shaft end
  • 5.0″ Diameter
  • Motor case length 3.55″
  • Sleeve bearings

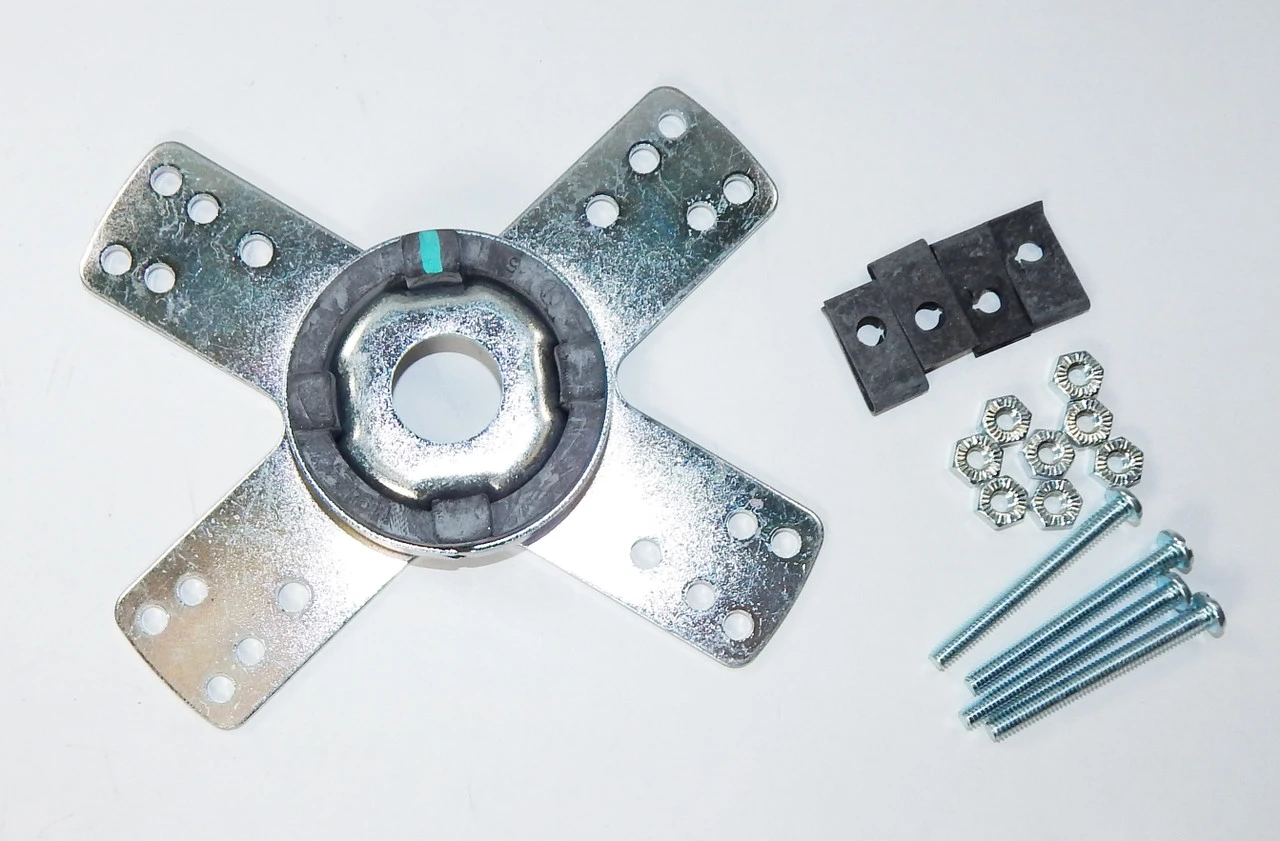

  • Hub Mount bracket, 2.25″ ring dia.
  • Includes capacitor
  • 1 Year mfg warranty

Permanent Split Capacitor Motor. Automatic Overload Protection. Continuous Duty; Open Drip Proof Enclosure; Class B Insulation; 40C Ambient Temperature; 30″ Leads.  K048WGP4386013B; Suggested after market replacement for GE DG3001, DG3002, DG3003, DG3004, DG3021, DG3022, DG3023, DG3024

Reviews

There are no reviews yet.

Be the first to review “1468P Nidec | 1/20 Hp 1550 RPM 1-Speed 115/208-230V; 5.6″ Blower Motor” Cancel reply
