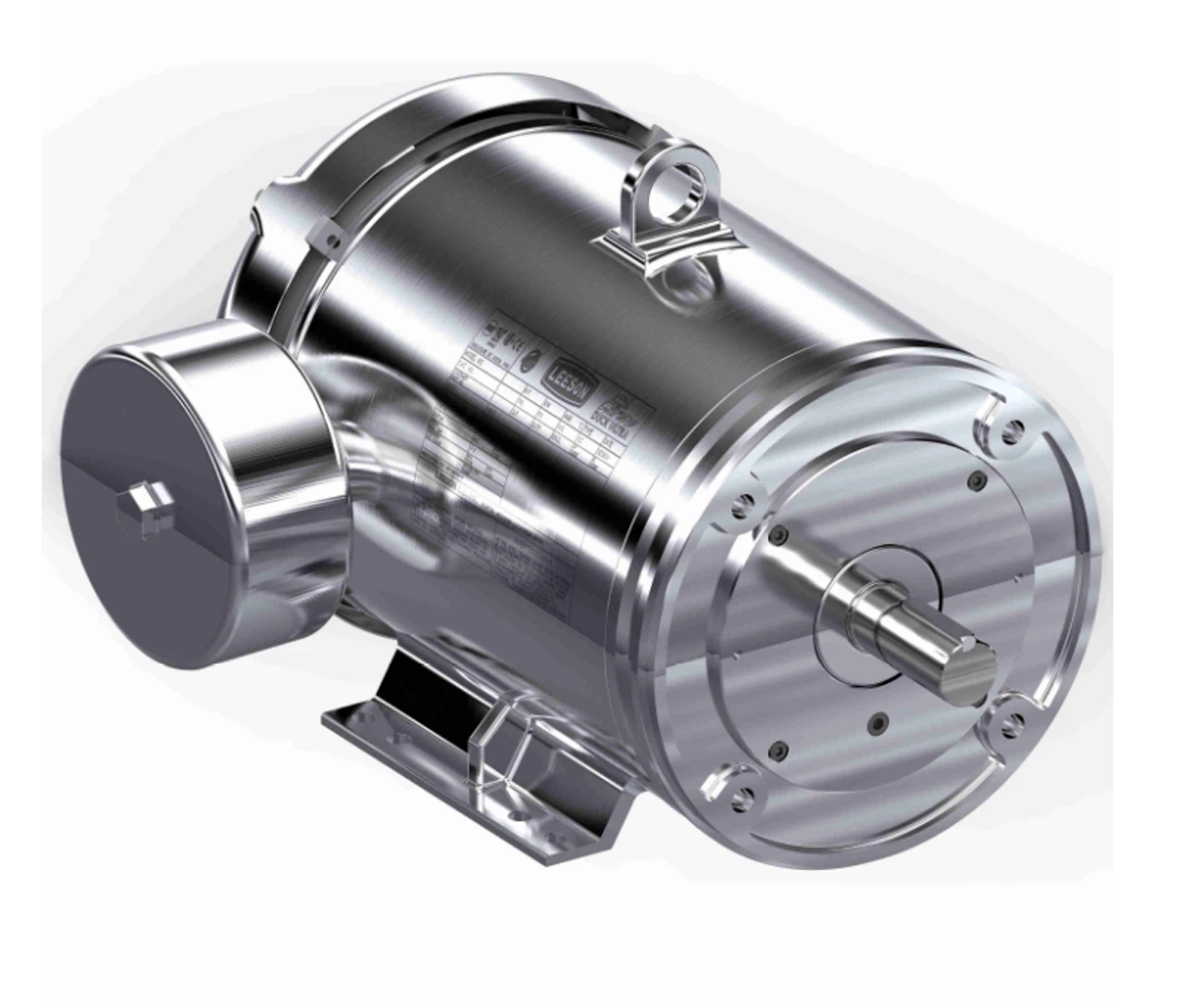

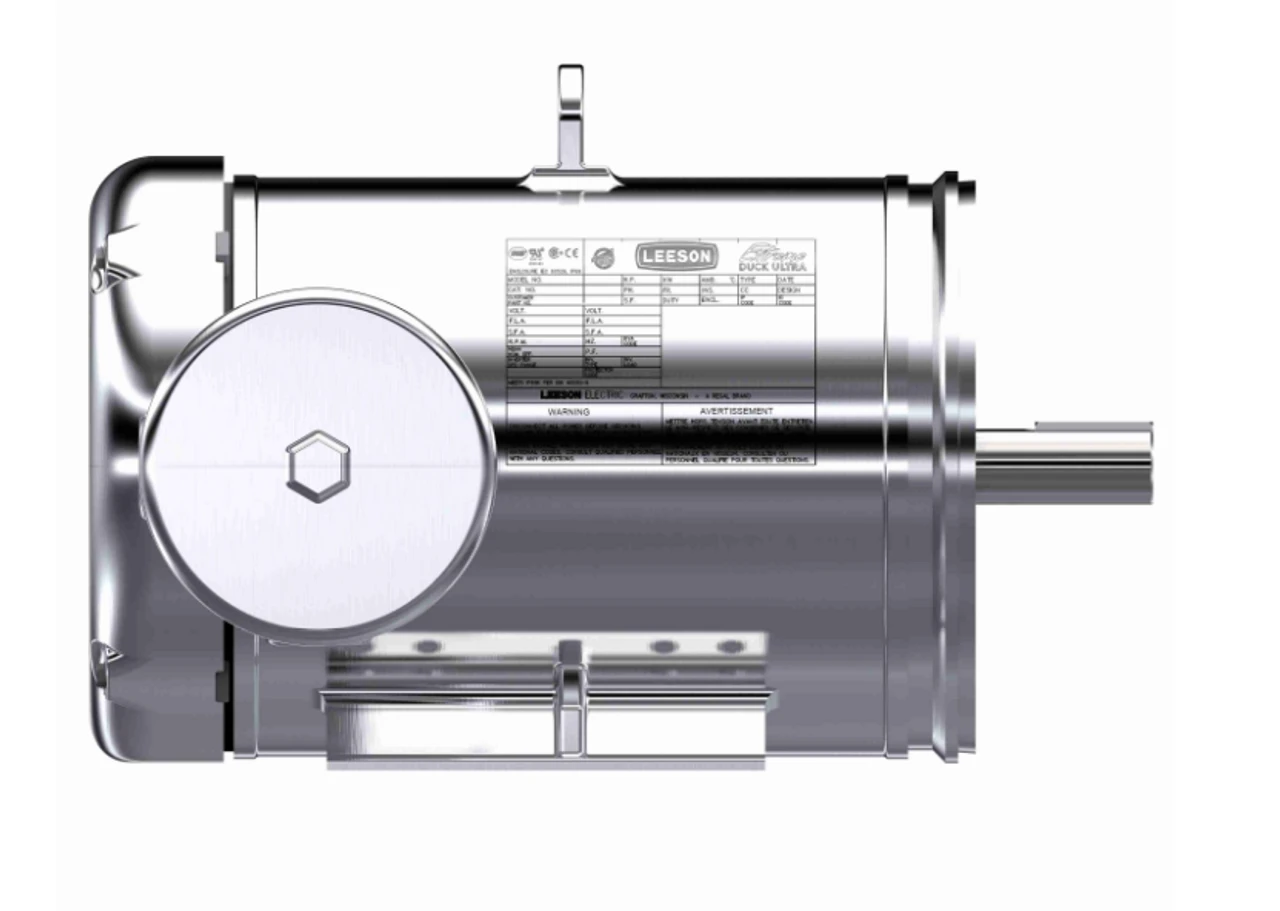

132649.00 Leeson Extreme Duck 5 Hp 1800 RPM 230/460V 3-Phase 184TC Frame TEFC (base) Motor

Original price was: $334.00.Current price is: $99.99.

Protect Your Information, Shop with Safe Payments

Buy quality, buy with us.

Efficiency meets excellence in customer care.

Top-Notch Quality

5 hp 1800 RPM, 12.6/6.3 amps 230/460 Volts 60 Hz. Three Phase
NEMA 184TC frame, C-face, Stainless Steel Keyed Shaft 1 1/8″ Diameter x 2 5/8″
Service Factor: 1.15, Overload protection = None
Rigid Base, Reversible, Ball Bearings, Class F Insulation
1 Year Manufacture Warranty,

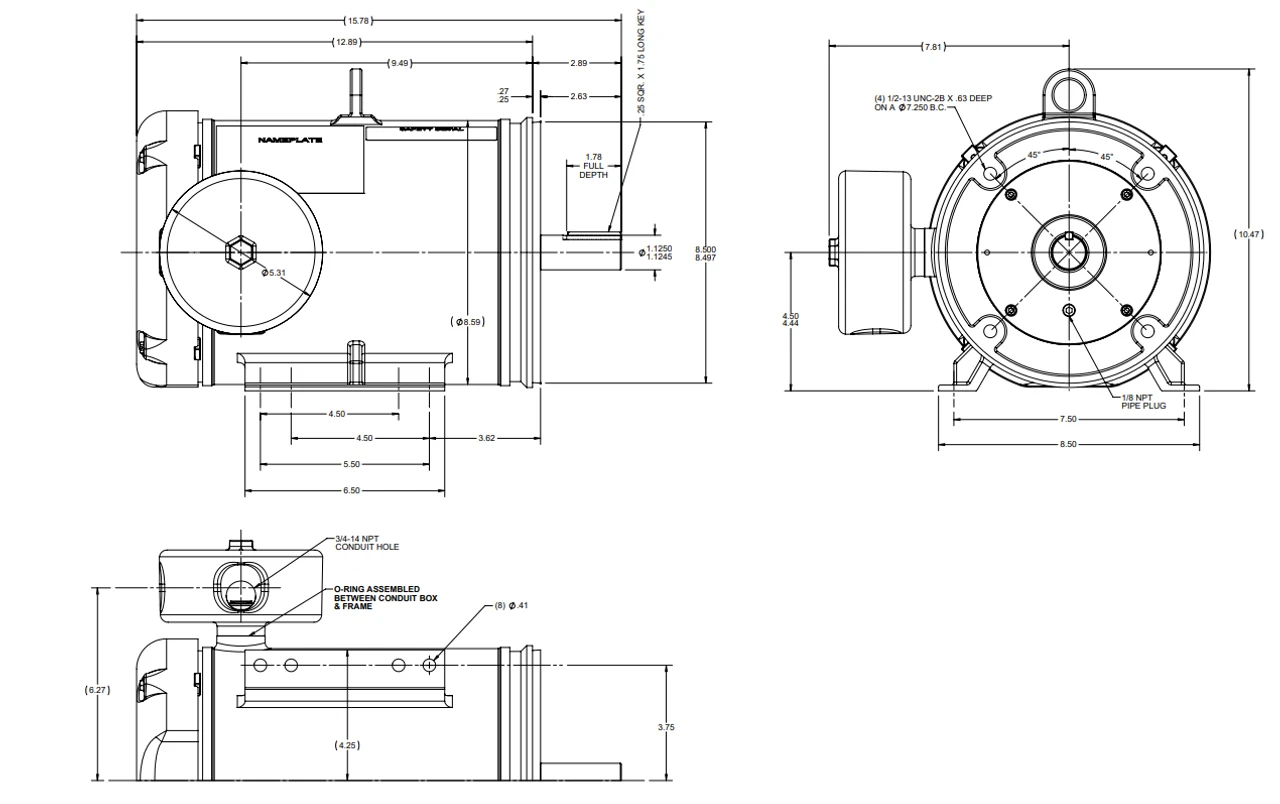

Stainless Steel wash-down motors are use in applications involving challenging caustic environments. This is a three phase electric motor with a C-face mount. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8″ on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. 132649.00
