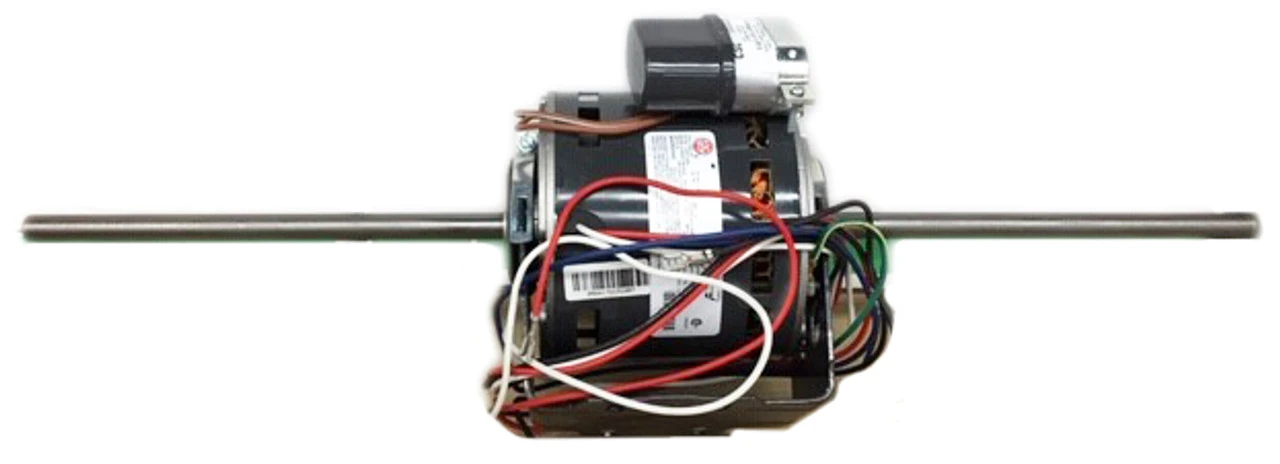

1261 Nidec | 1/15 Hp 1050 RPM 3-Speed 208-230V; 5.0" Blower Motor
1261 Nidec | 1/15 Hp 1050 RPM 3-Speed 208-230V; 5.0" Blower Motor - Image 2
1261 Nidec | 1/15 Hp 1050 RPM 3-Speed 208-230V; 5.0" Blower Motor -MotorHub Shop Nidec 1261 Line 30625.1568908017

1261 Nidec | 1/15 Hp 1050 RPM 3-Speed 208-230V; 5.0″ Blower Motor

$235.40 Original price was: $235.40.$98.99Current price is: $98.99.

Buy Now
SKU: ZWXLY 1698668144 Categories: Dual Shaft Motors, HVAC Motors & Draft Inducers Tag: Nidec
  • Protect Your Information, Shop with Safe Payments
  • Buy quality, buy with us.
  • Efficiency meets excellence in customer care.
  • Top-Notch Quality
Browse
  • Electric Motors
    • Air Compressor Motors
    • Ametek Lamb Vacuum Motors
    • Bison Gear Motors
    • Dayton Gear Motors
    • Fasco Motors
    • Leeson/Marathon Electric Motors
    • Modine Replacement Motors
    • Motor Controls
    • Unit Bearing Motors
  • HVAC Motors & Draft Inducers
    • Air Condenser Fan Motor
    • Dayton Ventilator Replacement Motors
    • Draft Inducer Venter Motors-Furnace
    • Dual Shaft Motors
    • Furnace Motors
    • Hanging Furnace Motors
    • HVAC-OEM Blower Motors
    • Penn Vent Motors
    • Water Heater Exhaust Blowers
  • Pool & Spa Motors
    • Century Pool & Spa Motors
    • Marathon/Leeson Jet Pump Motors
    • PENTAIR EQ Series Pump Motor
    • US Electric Motors
  • Pulleys and Sheaves
    • 3V Pulley
    • 5V Pulley
    • A/B Pulley
    • AK Sheaves
    • AK-H Pulleys-Bushing Required
    • BK Sheaves
    • BK-H Pulleys-Bushing Required
    • Bushing-Taper Lock
    • C Pulley
    • Die Cast-Fixed Bore
    • Variable Pitch-Fixed Bore
  • Uncategorized
Recently Viewed
  • B387 Century 6 HP 3450 RPM R56Y Frame 230V Air Compressor Motor - Century # B387 B387 Century 6 HP 3450 RPM R56Y Frame 230V Air Compressor Motor - Century # B387 $340.00 Original price was: $340.00.$96.99Current price is: $96.99.
  • Description
  • Reviews (0)

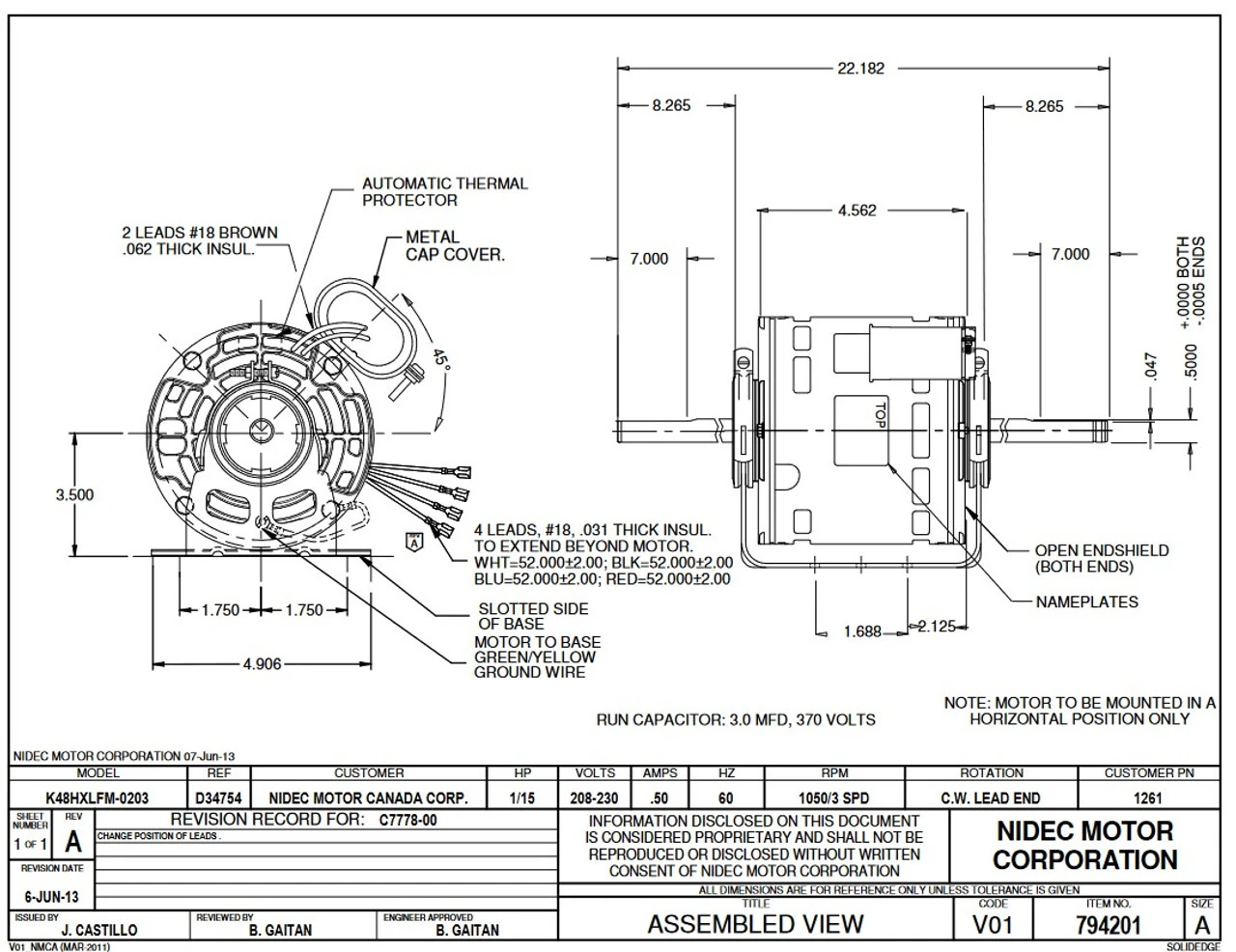

  • 1/15 hp 1050 RPM 3-Speed 208-230V 0.5 amps
  • Shaft 8.265″ x 3/8″ x 8.265″
  • Rotation CCW shaft end
  • 5.0″ Diameter
  • Motor case length 4.562″
  • Sleeve bearings
  • Resilient Base Mount
  • 3 MFD capacitor included
  • 1 Year mfg warranty

PSC Motor. Automatic Overload Protection. Continuous Duty; Open Enclosure; Class B Insulation; 40C Ambient Temperature; 52″ Leads. Includes Resilient Base and Mounted Capacitor. MOTOR TO BE MOUNTED IN A HORIZONTAL POSITION ONLY. K048LFM0203013B
