Home / HVAC Motors & Draft Inducers / Dual Shaft Motors
  • NA1056 Nidec 1/2 Hp 1075 RPM 208-230V 5.6" Dia. (No Base) 3-Speed ODP Fan Motor -MotorHub Shop na1056 48175.1677256370
  • 1270 Nidec 1/20 Hp 1075 RPM 115V 5.0" Dia. (Base) 4-Speed Open Fan Motor -MotorHub Shop 2832 front 80255.1677085005
-60%

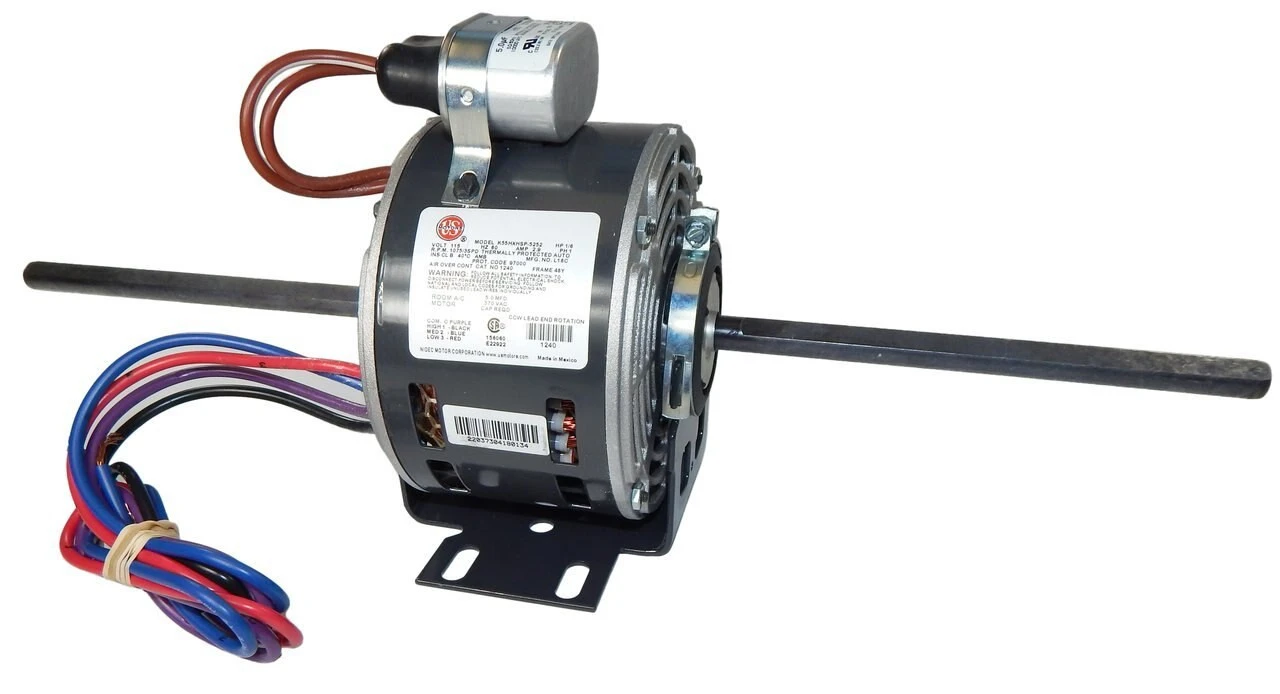

1257 Nidec | 0.167 Hp 1450 RPM 3-Speed 115-120V; 5" Blower Motor
1257 Nidec | 0.167 Hp 1450 RPM 3-Speed 115-120V; 5" Blower Motor - Image 2
1257 Nidec | 0.167 Hp 1450 RPM 3-Speed 115-120V; 5" Blower Motor -MotorHub Shop 1257 82339.1568551123

1257 Nidec | 0.167 Hp 1450 RPM 3-Speed 115-120V; 5″ Blower Motor

$243.10 Original price was: $243.10.$97.99Current price is: $97.99.

Buy Now
SKU: ZWXLY 1698668072 Categories: Dual Shaft Motors, HVAC Motors & Draft Inducers Tag: Nidec
  • Protect Your Information, Shop with Safe Payments
  • Buy quality, buy with us.
  • Efficiency meets excellence in customer care.
  • Top-Notch Quality
Browse
  • Electric Motors
    • Air Compressor Motors
    • Ametek Lamb Vacuum Motors
    • Bison Gear Motors
    • Dayton Gear Motors
    • Fasco Motors
    • Leeson/Marathon Electric Motors
    • Modine Replacement Motors
    • Motor Controls
    • Unit Bearing Motors
  • HVAC Motors & Draft Inducers
    • Air Condenser Fan Motor
    • Dayton Ventilator Replacement Motors
    • Draft Inducer Venter Motors-Furnace
    • Dual Shaft Motors
    • Furnace Motors
    • Hanging Furnace Motors
    • HVAC-OEM Blower Motors
    • Penn Vent Motors
    • Water Heater Exhaust Blowers
  • Pool & Spa Motors
    • Century Pool & Spa Motors
    • Marathon/Leeson Jet Pump Motors
    • PENTAIR EQ Series Pump Motor
    • US Electric Motors
  • Pulleys and Sheaves
    • 3V Pulley
    • 5V Pulley
    • A/B Pulley
    • AK Sheaves
    • AK-H Pulleys-Bushing Required
    • BK Sheaves
    • BK-H Pulleys-Bushing Required
    • Bushing-Taper Lock
    • C Pulley
    • Die Cast-Fixed Bore
    • Variable Pitch-Fixed Bore
  • Uncategorized
  • Description
  • Reviews (0)
  • 3/16 hp 1450 RPM 3-Speed 115-120V 2.5 amps
  • Shaft 8.25″ x 1/2″ x 8.25″, Shaft Height 3 1/2″
  • Rotation CCW lead end
  • 5″ Diameter
  • Motor case length 5.2″
  • Ball Bearings
  • Resilient base mount
  • Includes capacitor
  • 1 Year mfg warranty

Permanent Split Capacitor Motor. Automatic Overload Protection. Continuous Duty; Open Enclosure; Class B Insulation; 40C Ambient Temperature; 48″ Leads.  Suggested aftermarket replacement for IEC K48HXTSS-4128, 4128, K048CLD1123011B.
