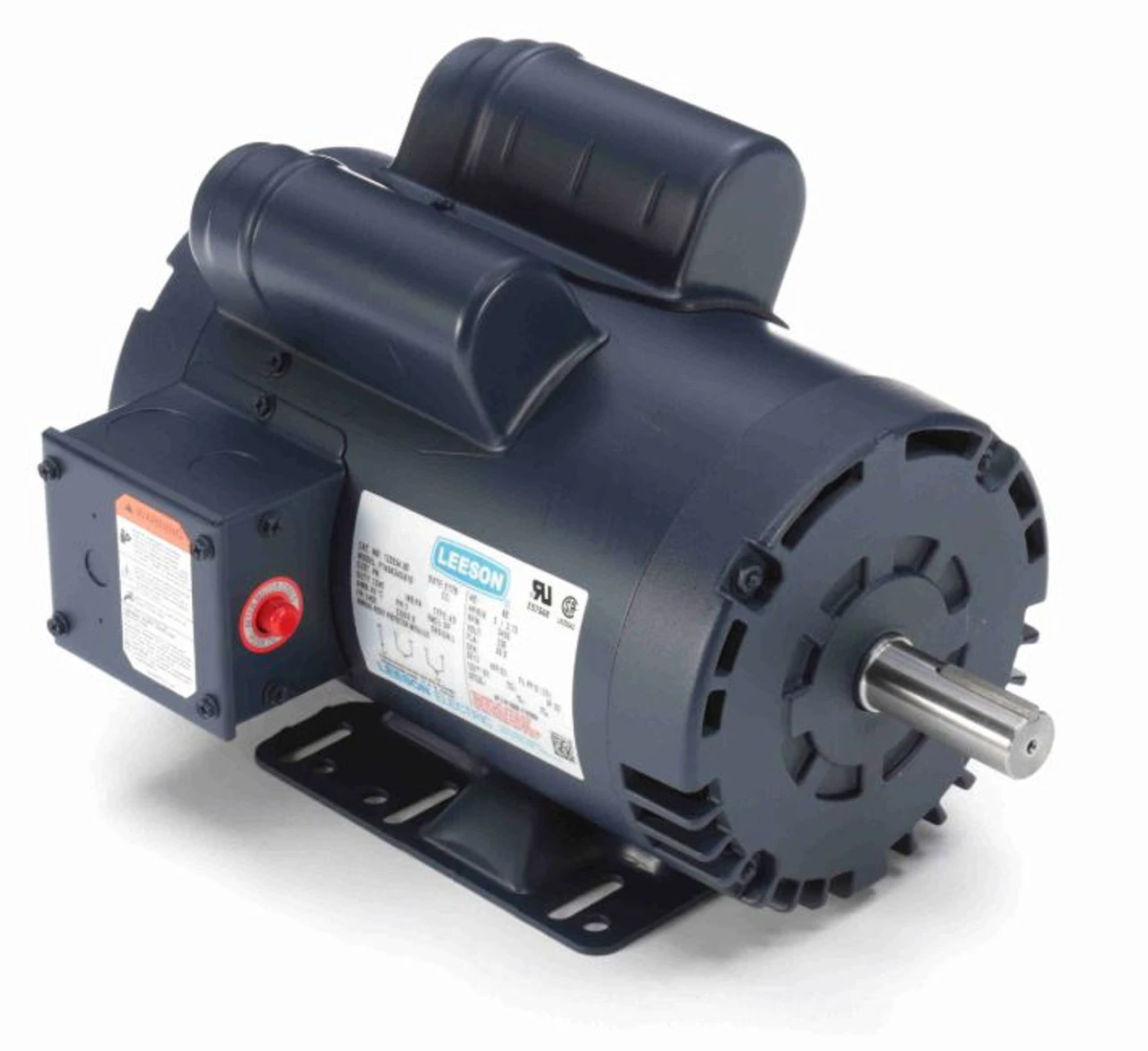

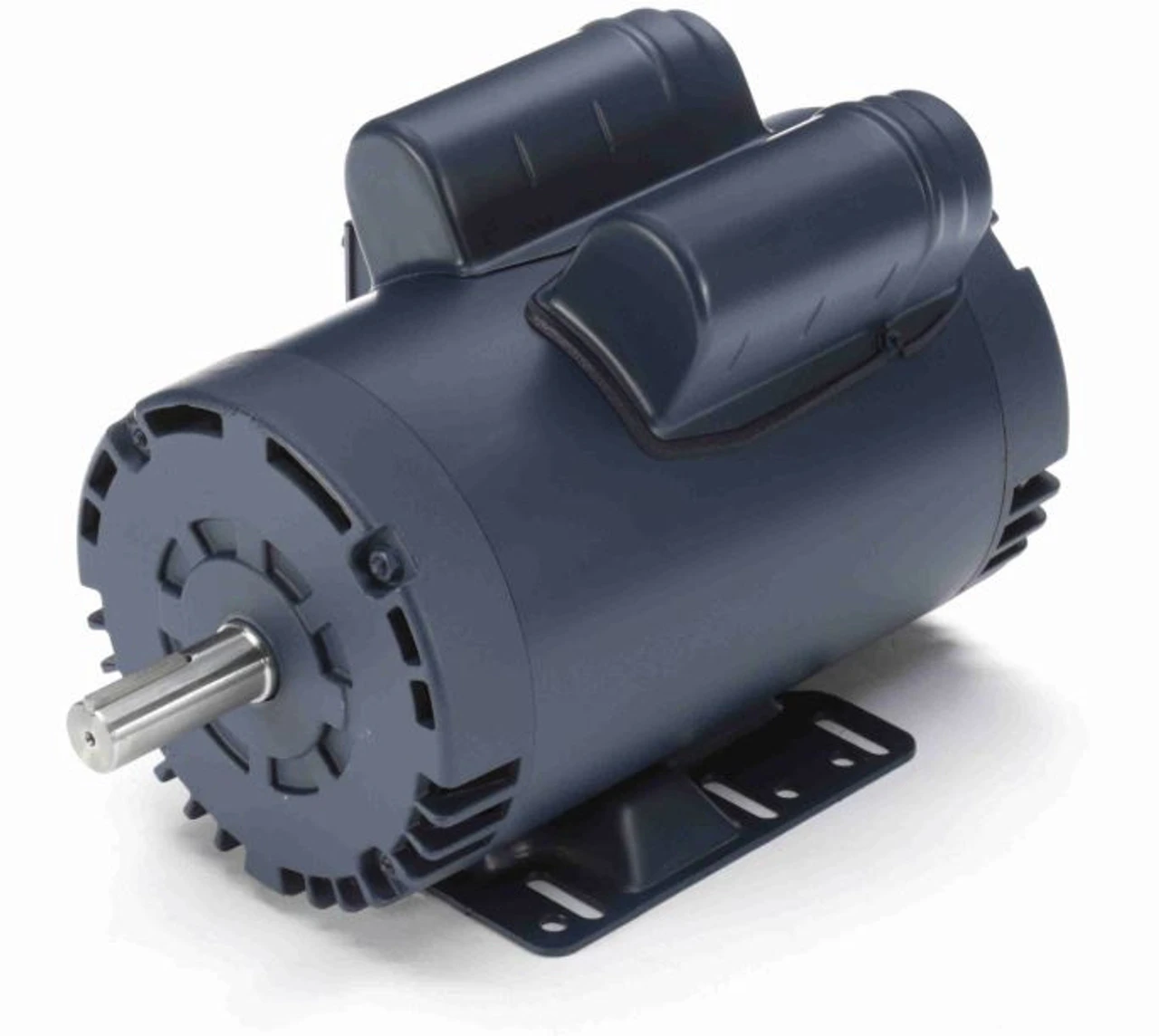

120554.00 Leeson | 5 Hp 3450 RPM 145T 230V Air Compressor Motor

Original price was: $334.00.Current price is: $97.99.

Protect Your Information, Shop with Safe Payments

Buy quality, buy with us.

Efficiency meets excellence in customer care.

Top-Notch Quality

5 hp 3450 RPM 20.8 amps 230V 60hz,
NEMA 145T Frame – Shaft: 7/8″ x 2 1/4″
Service Factor 1.0
Manual Overload Protection – Ball Bearings – Class F Insulation
Open Drip Proof – Rigid Base Mounting – Electrically Reversible
NEMA 145T Frame – Shaft: 7/8″ x 2 1/4″

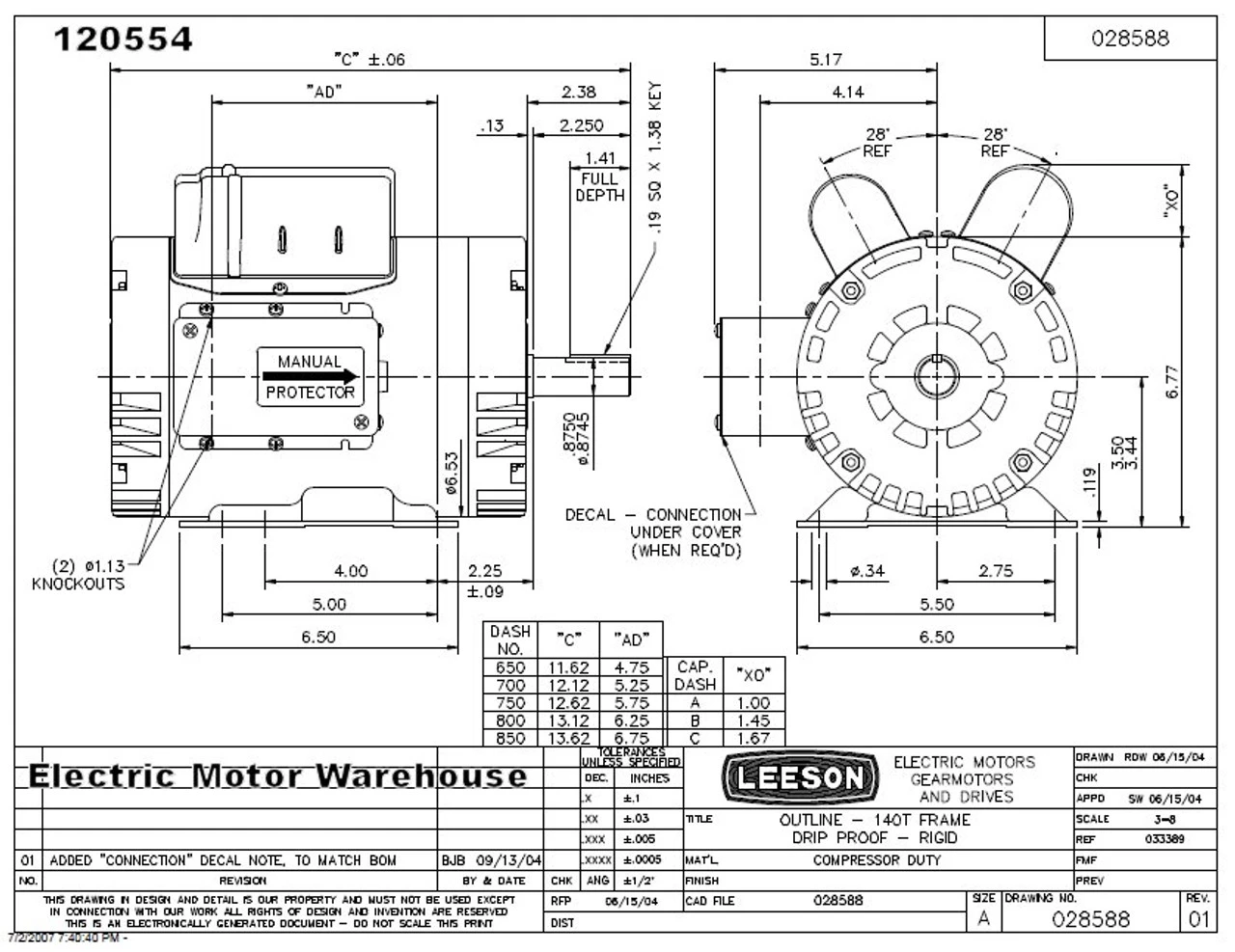

Overall Motor Length = 13.22 inches, motor name plate shows wiring diagram

Single Phase replacement compressor motor. Motor is designed to be used with a belt driven compressor. Not to be used where the motor is part of the compressor. Shaft is 7/8″ diameter x 2 1/4″ with keyway. Motor is Reversible. Flat mounting plate, standard NEMA 145T mounting. Capacitor Start/Capacitor Run. One Year Warranty. UL & CSA rated.

P145K34DB1D, 120554.00
