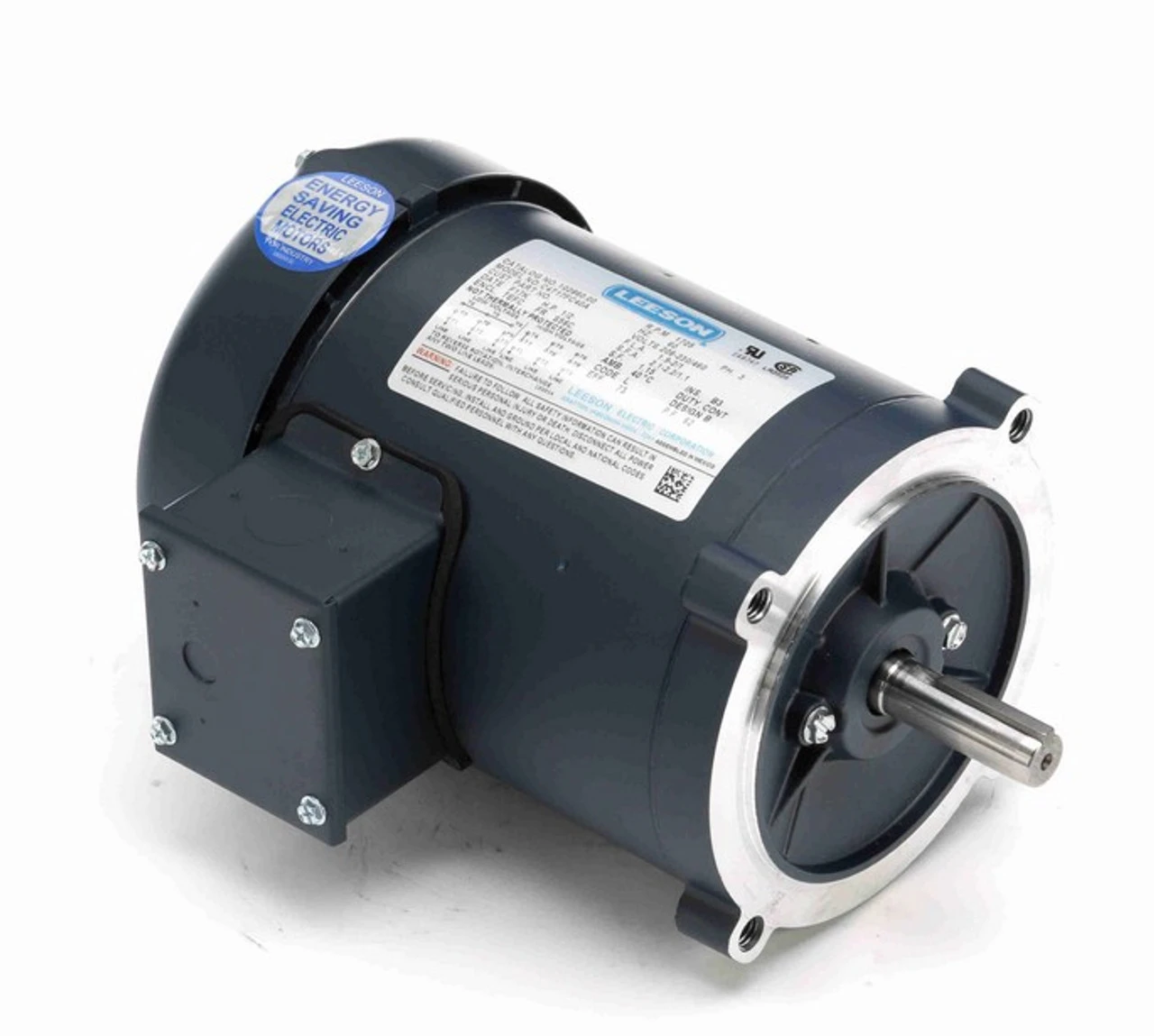

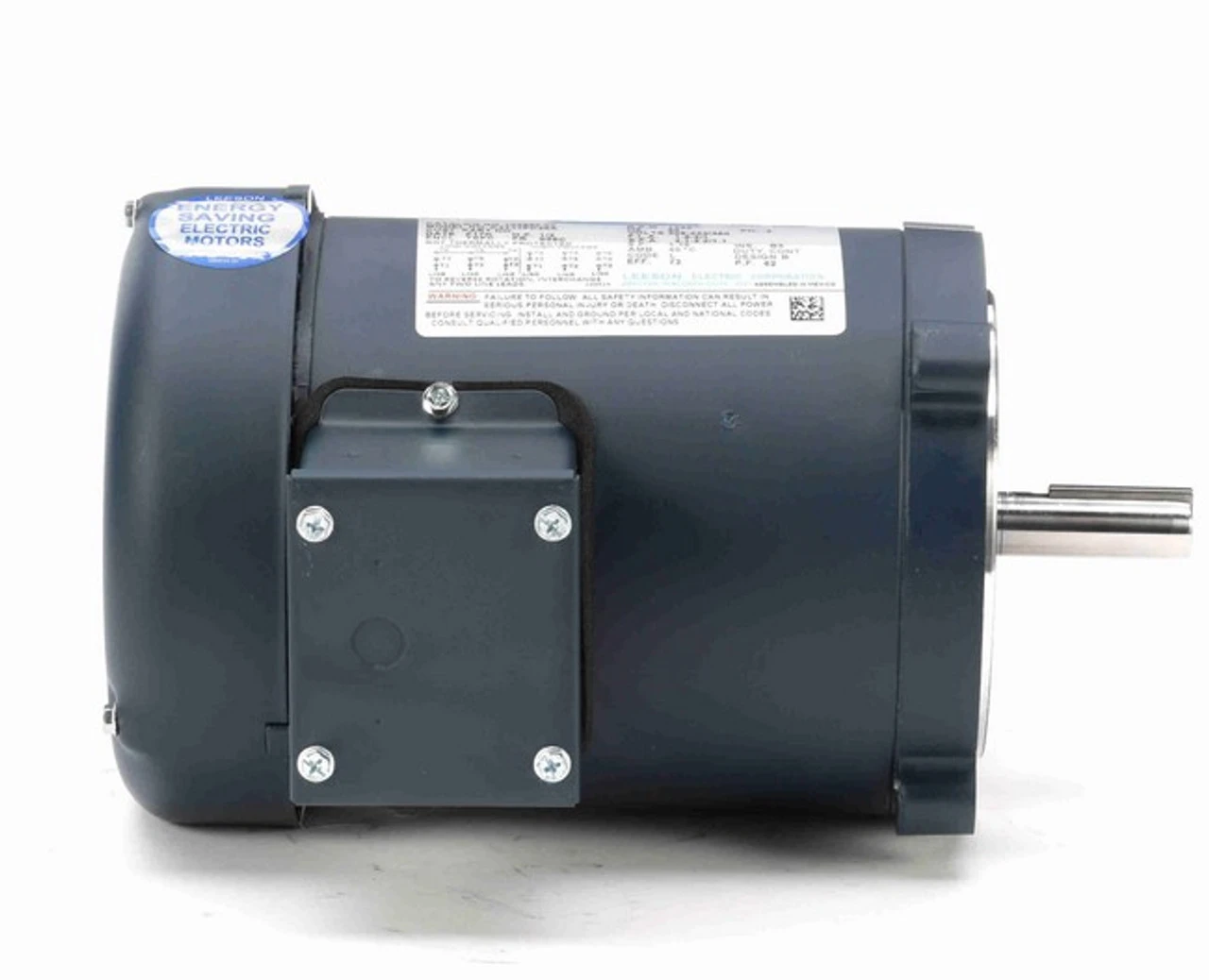

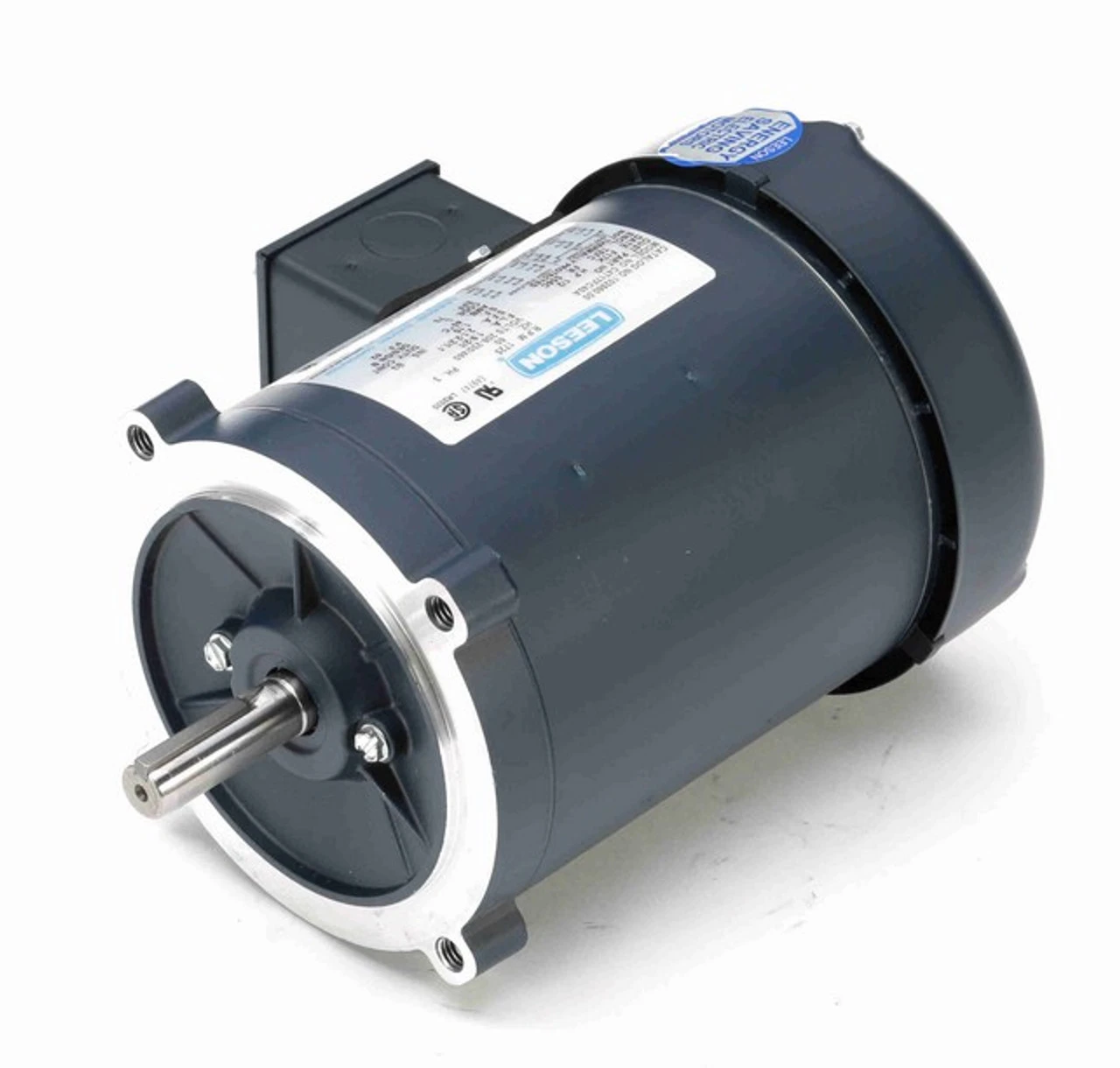

102860.00 Leeson 1/2 Hp 1800 RPM 208-230/460V 56C Frame TEFC C-Face (No Base) 3-Phase Motor

Original price was: $355.80.Current price is: $96.99.

Protect Your Information, Shop with Safe Payments

Buy quality, buy with us.

Efficiency meets excellence in customer care.

Top-Notch Quality

1/2 hp 1800 RPM, 1.9-2.0/1.0 amps 208-230/460 Volts 60 Hz. Three Phase Motor
NEMA 56C Frame Keyed Shaft 5/8″ Diameter x 1 7/8″
Service Factor: 1.15, Overload Protection = None
No Base, Reversible, Ball Bearings – Class B Insulation
1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a three phase Electric motor with a C-face mount. Motor has rigid base with C-Face mount. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 3 3/4″ on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. 102860.00
